YXZ-02600-ST YXZ Elite Long-Travel Kit with Stock Shocks

Load image into Gallery viewer, YXZ-02600-ST YXZ Elite Long-Travel Kit with Stock Shocks

YXZ-02600-ST YXZ Elite Long-Travel Kit with Stock Shocks

Regular price: $4,500.00
Sale price: $4,500.00
Regular price
Unit price: per

Quantity must be 1 or more

PART # YXZ-02600-ST

HCR Suspension's YXZ Elite Long-Travel Suspension System

Kit Features:

+4 inches wider per side; Additional 8 inches of track width

+4 inches of wheel base added ; 2 front , 2 rear

minimal weight increase of only 13 pounds on Elite kit while increasing strength exponentially.

Fiber Laser Cut construction for precise fit and finish

CNC'd 4130 heat treated billet mounting points for increased integrity

Angled catacomb design for optimal force distribution

RCV +4 extended axle bars. Heat Treated & through hardened

Unique trailing arm inspired design for minimal added weight and increased strength.

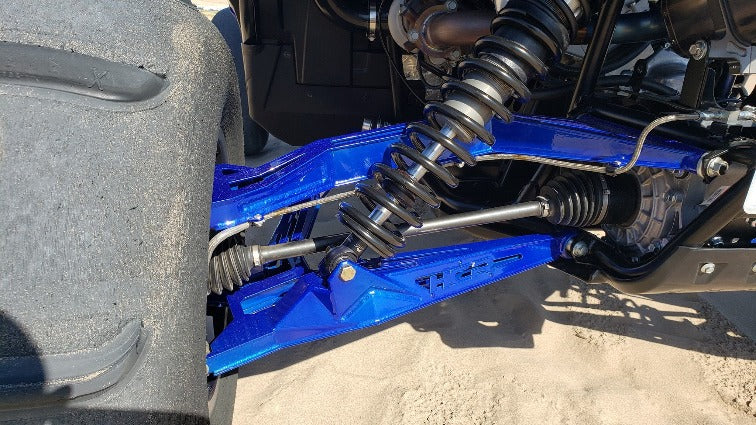

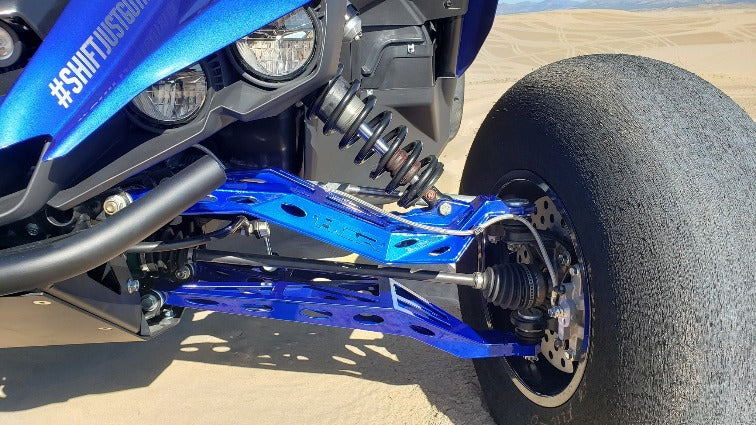

High Clearance Boxed A-Arm Design

Each piece is carefully tig welded for strength and aesthetics

OEM ball joints are reused to maximize low speed steering, ease & smooth travel with less maintenance

compatible with stock wheels

High-Clearance Arms provide an increase of 1.25” in ground clearance

100% Bolt-on installation using factory mounting points

Larger front tube mounts are 1.25” in diameter with Delrin bushings for increased strength and durability

4 Front A-arms
4 Rear Control arms
4 RCV Extended Axle Bars
1 Stock Series Shock Tower
1 set of tie rod extensions
Hardware pack
YXZ Installation guide
